- Functional Description
- Specifications

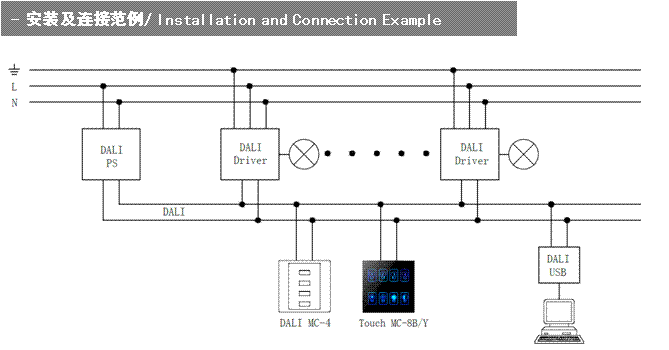

- Applications
1、Powered by DALI bus, and equipped with 8 backlight (blue or yellow) touch-type input buttons.
2、The functions of each button are freely configurable via DALI-configuration software.
3、Each button’s selectable control objects include: independent address, group address, or broadcast.
4、Each button is available for both “Short Press” and “Long Press" modes; each button can be configured with four DALI standard commands at most.?
?
電源輸入/ Power input | DALI總線/DALI BUS | ? | 執行標準/ Standard |
輸入電流/ Input Current | 8mA | ? | EN 55015 |
按鍵數量 / Number of keys | 8 | ? | EN 61347-1 EN 61347-2-11 |

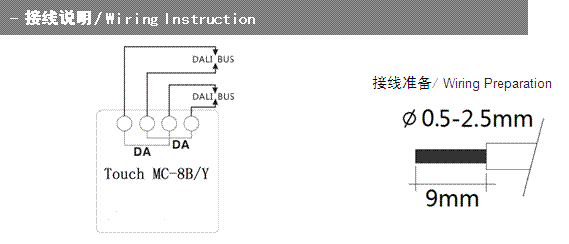

接口/ Interface | DALI | ? | EN 61547 |
按鍵功能/ Key Function | 由軟件獨立配置 /Independently configured by software | ? | IEC60929（DALI V0） IEC62386（DALI V1） |
工作溫度 /Operating Temperature | 0～+50℃ | ? | ? |
保存溫度 / Storage Temperature | 0～+50℃ | ? | ? |
防護等級 / Degree of protection | IP20 | ? | ? |
?
?
?
-
