- Functional Description
- Specifications

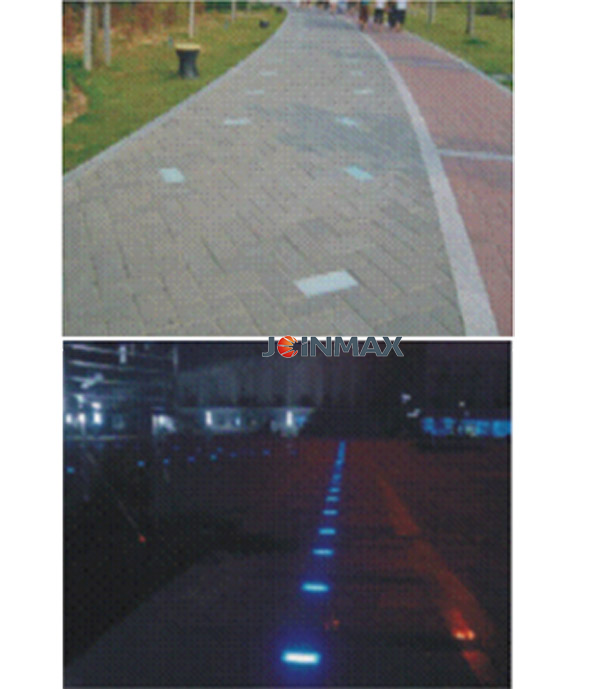

- Applications
?
技術分類Technical?Classification | 項目規格Item | 參數Parameter |
電氣性能Electrical?Properties | 供電電壓Input?voltage | DC24V |
最大功耗Max.power?consumption | 15W | |
光學性能Optical?Properties | 光源組成LED?composition | 216?PCS |
光色LED?Color | 單色/全彩?Single?Color/Full?Color? | |
光通量 luminous?flux | 550?lm | |
光束角?Beam?Angle | 140° | |
亮度等級Brightness?Grade | 每種顏色256?級?256?grade?per?color | |
光通維持率luminous?maintenance?rate | 50000?hour@70% | |
控制方式Control?Mode | 控制接口Interface | DMX512 |
控制系統Control?System | 中鳴科技Easyplay5.0?(Joinmax) | |

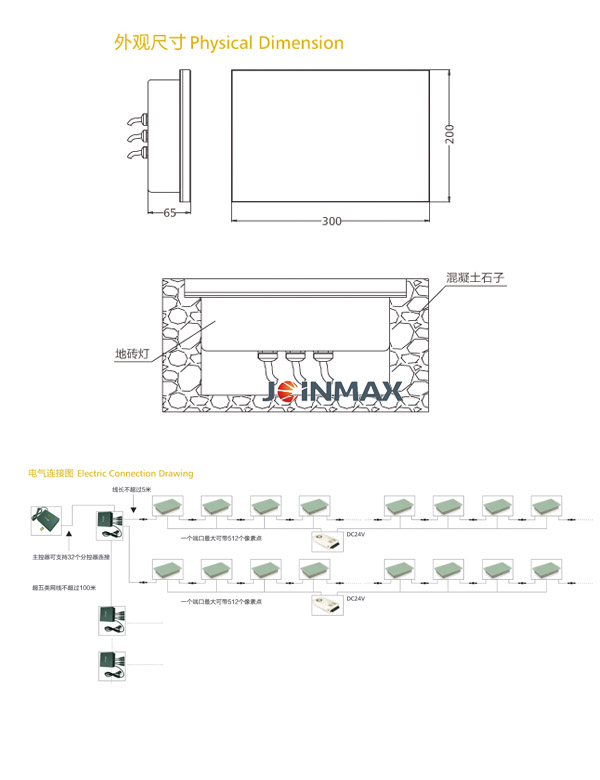

結構性能Structure | 尺寸(長x寬x高)?Dimension?(L*W*H) | 200X300X65mm |
重量Weight | 5Kg | |
燈體材料Material | 304不銹鋼底，全物理鋼化玻璃燈罩 304?staninless?steel?and?tempered?glass?surface | |
表面顏色Surface?Color | 可選?choice | |
燈具連接Connection | 4芯防水接插件，2芯電源電纜? 4-?pin?waterproof?connector 2-pin?power?cable | |
防護等級Protection?Rating | IP67 | |
工作溫度Work?Temperature | -20℃～40℃ | |
工作濕度Work?Humidity | 0～90% |
供電方式? Input?Voltage | 發光顏色?LED?Color | 產品編號?Model |
DC?24V | 白光??5草帽?216顆15W | JZ04-121612-025 |
紅光??5草帽?216顆15W | JZ04-121611-025 | |
綠光??5草帽?216顆15W | JZ04-121616-025 | |
藍光??5草帽?216顆15W | JZ04-121609-025 | |
黃光??5草帽?216顆15W | JZ04-121608-025 | |
RGB??5草帽?216顆15W | JZ04-121607-025 |
-
